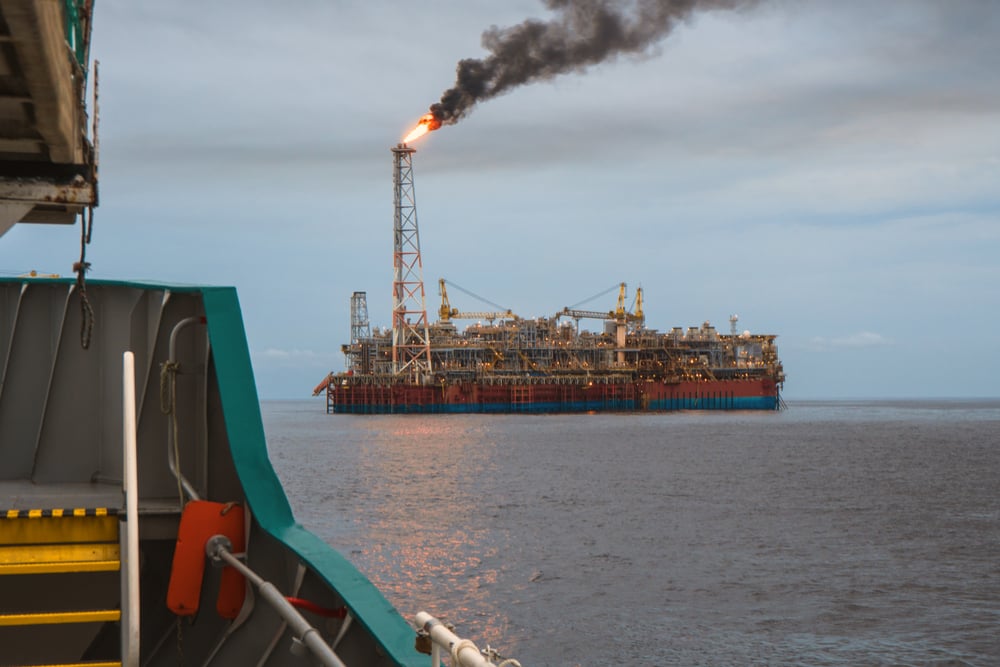

Floating Production Storage and Offloading (FPSO) vessels represent one of the most mechanically complex platforms in offshore oil and gas production. Unlike fixed installations, FPSOs are never truly still. They pitch, roll, and yaw continuously in response to wave action, while onboard machinery including compressors, pumps, generators, and processing equipment introduces persistent vibration throughout the hull structure. For electrical connectors, control systems, and instrumentation distributed across these vessels, that constant motion is a primary failure driver that must be engineered against from the start.

Electroplated connector surfaces play a central role in how well FPSO electrical systems hold up under these conditions. Choosing the right plating and specifying it correctly is what separates connectors that last through a 20-year production campaign from those that degrade within the first few years of operation.

How FPSO Motion and Vibration Degrade Connector Performance

The failure mechanisms that motion and vibration introduce are distinct from the corrosion and pressure challenges associated with static subsea equipment. On an FPSO, the concern is fretting which occurs when mated connector surfaces experience small-amplitude, repetitive sliding motion. This sliding motion is exactly what vibration from onboard machinery and wave-induced hull flexing produces. Even when two contact surfaces appear firmly mated, micro-motion at the interface causes the base metal beneath a plating layer to oxidize or erode. Once fretting corrosion develops, contact resistance increases, signal integrity degrades, and connectors that appear physically intact begin to fail.

The consequences range from nuisance faults in instrumentation circuits to loss of control signals for safety-critical systems. On a vessel handling live hydrocarbons continuously, neither outcome is acceptable.

Gold plating is the standard response to fretting risk in precision connector applications. Gold resists oxidation and supports low, stable contact resistance, which is why it is widely specified for connector surfaces exposed to micro-motion. That said, gold’s protective benefit depends on deposit integrity. If wear progresses through the gold layer and exposes the substrate beneath, fretting debris and oxidation can still develop at the interface. For the low-current signals common in control and instrumentation applications aboard FPSOs, including sensor outputs, actuator commands, and communications, gold over nickel provides the combination of stable contact resistance and wear resistance that other finishes cannot match in dynamic environments.

Nickel underlayers contribute meaningfully to this performance. Their primary roles are to act as a diffusion barrier that prevents copper migration from the base substrate and to provide a load-bearing foundation that supports the gold topcoat under cyclic loading. Together, these properties help maintain contact surface integrity in the marine environments that FPSO electrical systems operate in.

Plating Specifications for Dynamic Loading Conditions

Connector plating specifications on offshore platforms are driven primarily by corrosion resistance requirements. On FPSOs, mechanical performance under cyclic loading becomes an equally important variable, and specifications must reflect that.

Gold deposit thickness for fretting-resistance applications typically requires tighter controls than standard corrosion-resistance plating specifications. Deposits that are too thin wear through quickly under the micro-motion that FPSO vibration introduces. Deposits that are too thick can create dimensional problems on precision-machined connector housings and introduce other design and cost complications, though the specific effects depend on alloy chemistry, process parameters, and the stress state of the application. Plating thickness control and uniformity across the entire contact surface determines whether a connector maintains design-intent performance through years of dynamic loading. Nominal specification compliance alone is not sufficient.

Hardness specification matters as well. Harder gold alloys such as cobalt-hardened or nickel-hardened gold outperform soft pure gold in high-wear connector applications because they resist the abrasive micro-motion that fretting generates. For FPSO applications where mating cycles may be infrequent but vibration-induced movement is continuous, alloy selection can meaningfully extend service life.

Palladium and palladium-nickel alloys are used as alternatives to gold in certain FPSO connector applications, particularly where cost pressure makes heavy gold deposits difficult to justify across a large connector population. Palladium-nickel offers good hardness and corrosion resistance, and is often specified with a thin gold flash to improve surface behavior and contact reliability. In low-current signal applications, performance depends strongly on finish architecture, contact force, lubrication, and qualification testing, and palladium-nickel systems should be evaluated against the specific electrical requirements of the application before substituting for gold.

FPSO Environmental Context: Beyond Vibration

Motion and vibration are the defining challenges for FPSO connector plating, but they do not operate in isolation. The marine environment surrounding an FPSO contributes its own degradation pressures that plating must simultaneously address.

Salt-laden air penetrates throughout the vessel. In areas near the sea surface, humidity cycles between saturation and drying as weather and vessel position change. Processing areas introduce hydrogen sulfide, hydrocarbon vapors, and elevated temperatures. Any connector plating specified for an FPSO must perform against this full environmental profile, not just under controlled laboratory conditions, but through the combined stresses that accumulate over a production campaign measured in decades.

Electroless nickel is widely used in FPSO applications where corrosion resistance and dimensional uniformity are prioritized, particularly for structural components, valve bodies, and instrumentation housings. Its ability to deposit uniformly over complex geometries makes it well-suited to precision components that must maintain dimensional tolerances in corrosive service. Electroplated deposits can exhibit thickness variation at edges and recesses that electroless nickel avoids.

For connector contact surfaces specifically, the layered approach combining a nickel underlayer with a hard gold overplate remains the specification that balances corrosion resistance, fretting resistance, and contact reliability across the range of conditions an FPSO presents.

Qualification and Testing Considerations

Vibration qualification for FPSO connector assemblies draws from both marine and industrial standards, with operators and classification societies often specifying test regimens that go beyond what general-purpose connector specifications require. Sinusoidal and random vibration testing across relevant frequency ranges, combined with temperature and humidity cycling, provides a more realistic picture of how a plated connector will perform than static corrosion testing alone.

For operators and procurement teams evaluating connector plating suppliers, process documentation matters as much as meeting specification requirements. Bath chemistry management, thickness verification methods, and adhesion testing protocols should all be traceable and consistent. In a dynamic environment where fretting is an active failure mechanism, process consistency is what ensures connectors at the edge of a plating specification perform as reliably as those at the center.

Specifying for the Full Campaign

FPSO electrical reliability is built from the accumulated performance of individual components operating continuously in a vessel that is never fully at rest. Getting connector plating right means choosing materials that resist fretting, specifying thickness tolerances appropriate for dynamic loading, and verifying process consistency through production. Those decisions determine whether control and instrumentation systems remain dependable through a production campaign measured in decades.
